TCEKFLEZE, TCEKFLEZY

...x4x0.4 (0.6; 0.8)

1
2
3
4
5
6
7
8

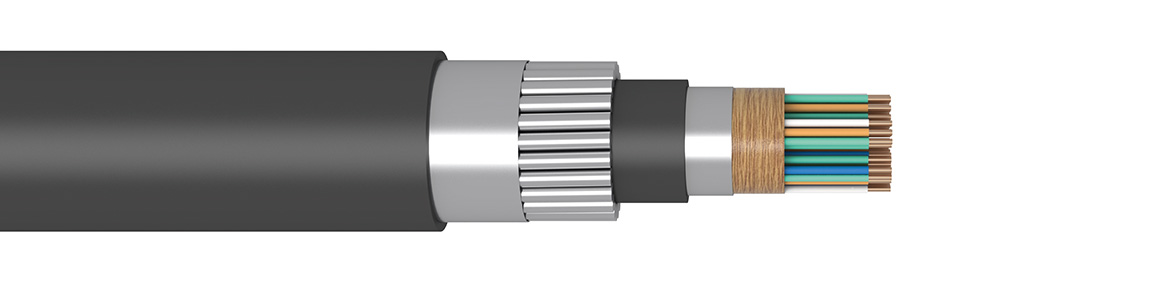

1

Copper wire

2

Core insulation – solid PE

3

Crepe paper

4

Laminated aluminium foil

5

PE inner jacket, black

6

Armor aluminium wires

7

Fe/Zn tape

8

PE or PVC outer jacket, black

Transmission element – each 4 cores are twisted a star quad, the quads are stranded to units, the units are stranded to the cable core. Cable core is filled.

Specification

TP 31.30.13 – KD – 001/94
TP 31.30.13 – KD – 002/94

Application

» for basic phone services in analogue and digital transmission systems
» designed to be placed under ground and to areas with higher demands for tensile strength
» suspension without supporting rope and laying in areas jeopardised by effects of alternate electromagnetic fields
» with PVC shield designed to be placed in areas with fire spread danger

Environmental conditions

Temperature ranges for laying and assembly –10 °C  to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years


D – outside cable diameter

Electrical parameters (20 °C)

Conductor diametermm0.4 0.6 0.8
Max. loop resistanceΩ/km300
133.273.6
Insulation resistance min.GΩ.km101010
Mutual capacitancenF/km494949
Capacity unbalance k1at 800 HzpF/500 m800800500
Effective test voltage wire/wire at 50 HzV100010001000
Effective test voltage wire/shield at 50 HzV2,0002,0002,000
Operating voltage max.Vss250250250
Design code TCEKFLEZE Design code TCEKFLEZE Design code TCEKFLEZE
Wire/core diameter 0.4/0.9 mm Wire/core diameter 0.6/1.3 mm Wire/core diameter 0.8/1.7 mm
Number of units External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m] External diameter [mm] Net weight [kg/km] Standard production length [m]
3 24.5 465 2,000/D 26.5 565 2,000/B 29.0 670 2,000/B
5 26.0 520 2,000/D 28.0 635 2,000/B 31.0 800 2,000/A
10 29.0 665 2,000/B 33.0 890 1,000/A 35.0 1,120 1,000/D
15 29.5 710 2,000/A 34.0 1,005 1,000/A 37.5 1,300 1,000/B
20 31.0 805 2,000/A 35.5 1,155 1,000/D 40.5 1,585 1,000/B
25 32.0 880 2,000/A 37.0 1,275 1,000/B 43.5 1,805 1,000/A
35 34.5 1,030 1,000/A 41.0 1,590 1,000/B 49.0 2,270 500/B
50 36.5 1,240 1,000/B 46.0 1,980 500/A 56.0 2,945 500/A
75 40.5 1,555 1,000/B 52.5 2,615 500/B 63.5 3,935 250/A
100 44.5 1,880 500/A 56.5 3,165 500/B
150 51.0 2,475 500/B 64.0 4,280 250/A
200 56.0 3,020 500/B
250 60.5 3,570 500/B
300 64.0 4,080 250/A
Design code TCEKFLEZY Design code TCEKFLEZY Design code TCEKFLEZY
Wire/core diameter 0.4/0.8 mm Wire/core diameter 0.6/1.2 mm Wire/core diameter 0.8/1.6 mm
3 25.5 560 2,000/D 27.5 665 2,000/B 30.0 780 2,000/B
5 27.0 615 2,000/D 29.0 740 2,000/B 32.0 920 2,000/A
10 30.0 775 2,000/B 34.0 1,020 1,000/A 36.0 1,265 1,000/D
15 30.5 820 2,000/A 35.0 1,140 1,000/A 38.5 1,450 1,000/B
20 32.0 925 2,000/A 36.5 1,300 1,000/D 41.5 1,750 1,000/B
25 33.0 1,005 2,000/A 38.0 1,425 1,000/B 44.5 1,985 1,000/A
35 35.5 1,165 1,000/A 42.0 1,755 1,000/B 50.0 2,470 500/B
50 37.5 1,385 1,000/B 47.0 2,165 500/A 57.0 3,180 500/A
75 41.5 1,720 1,000/B 53.5 2,830 500/B 64.5 4,025 250/A
100 45.5 2,060 500/A 57.5 3,400 500/B
150 52.0 2,685 500/B 65.0 4,555 250/A
200 57.0 3,255 500/B
250 61.5 3,825 500/B
300 65.0 4,350 250/A
Drum diameter (mm)
A 2,250 B 2,000 C 1,750 D 1,500 E 1,250 F 1,000

Armor is made from Al wires of nominal diameter 3.15 mm.
Nominal thickness of PVC sheath above armor is 2.5 mm.
Nominal thickness of PE sheath above armor is 2.0 mm.
