Armoured
Indoor
Outdoor
Halogen Free
Direct Burial

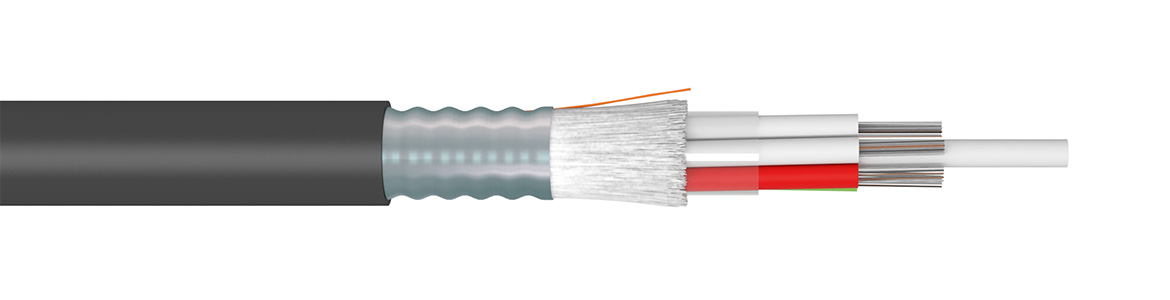

FRP dielectric central strength member.
Gel filled PBT loose tube with optical fibers.
Water-swellable tape.
Waterblocking E-glass yarn.
Rip-Cord.
Corrugated steel tape.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| LH0I | 48 | 2.3 | 11.5 | 125.0 | 1,200 | 10,000 |
| LH02 | 48 | 2.3 | 11.5 | 151.0 | 1,200 | 10,000 |
| FH0I | 72 | 2.3 | 12.5 | 150.0 | 2,100 | 10,000 |
| FH02 | 72 | 2.3 | 12.5 | 178.0 | 2,100 | 10,000 |
| GH0I | 96 | 2.3 | 14.5 | 185.0 | 2,600 | 10,000 |
| GH02 | 96 | 2.3 | 14.5 | 219.0 | 2,600 | 10,000 |
| HH0I | 144 | 2.3 | 16.5 | 250.0 | 4,500 | 10,000 |
| HH02 | 144 | 2.3 | 16.5 | 288.0 | 4,500 | 10,000 |
Installation: -15 to +50 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
CLT CST double sheath
