Indoor
Outdoor
Halogen Free
FTTx
High Tensile
Duct

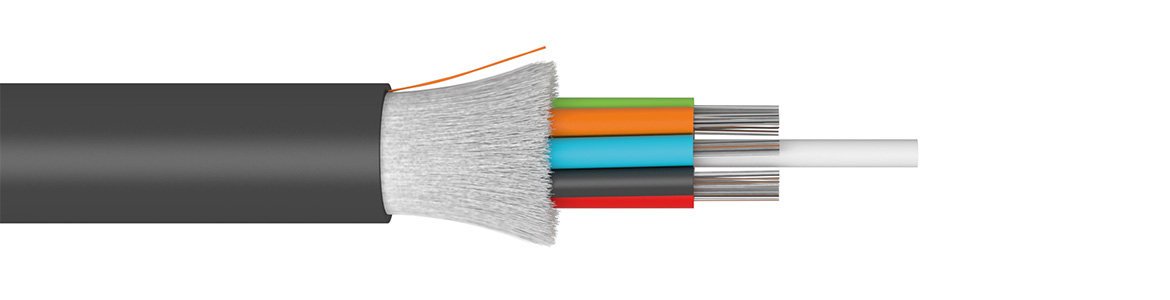

FRP dielectric central strength member.
Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| LR0I | 48 | 2.3 | 9.2 | 74.0 | 2,600 | 2,000 |
| LR02 | 48 | 2.3 | 9.2 | 95.0 | 2,600 | 2,000 |
| FR0I | 72 | 2.3 | 10.6 | 99.0 | 4,000 | 2,000 |
| FR02 | 72 | 2.3 | 10.6 | 122.0 | 4,000 | 2,000 |
| GR0I | 96 | 2.3 | 12.0 | 131.0 | 7,000 | 2,000 |
| GR02 | 96 | 2.3 | 12.0 | 158.0 | 7,000 | 2,000 |
| HR0I | 144 | 2.3 | 14.9 | 197.0 | 10,000 | 2,000 |
| HR02 | 144 | 2.3 | 14.9 | 231.0 | 10,000 | 2,000 |
| CR0I | 72 | 1.7 | 9.4 | 81.0 | 3,700 | 2,000 |
| CR02 | 72 | 1.7 | 9.4 | 101.0 | 3,700 | 2,000 |
| PR0I | 96 | 1.7 | 10.8 | 107.0 | 7,300 | 2,000 |
| PR02 | 96 | 1.7 | 10.8 | 130.0 | 7,300 | 2,000 |
| RR0I | 144 | 1.7 | 12.8 | 150.0 | 11,500 | 2,000 |
| RR02 | 144 | 1.7 | 12.8 | 179.0 | 11,500 | 2,000 |
Installation: -15 to +50 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
CLT CST
