Armoured
Indoor
Outdoor
Halogen Free
Direct Burial

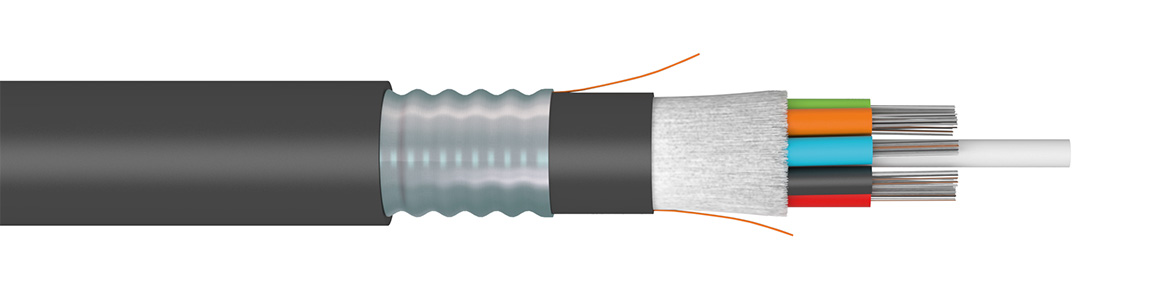

FRP dielectric central strength member.
Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
Rip-Cord.
FR-LSZH or PE inner jacket.
Corrugated steel tape.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| LIPI | 48 | 2.3 | 13.5 | 165.0 | 1,500 | 10,000 |
| LIP2 | 48 | 2.3 | 13.5 | 196.0 | 1,500 | 10,000 |
| LIF2 | 48 | 2.3 | 13.5 | 209.0 | 1,500 | 10,000 |
| FIPI | 72 | 2.3 | 14.5 | 197.0 | 3,300 | 10,000 |
| FIP2 | 72 | 2.3 | 14.5 | 230.0 | 3,300 | 10,000 |
| FIF2 | 72 | 2.3 | 14.5 | 246.0 | 3,300 | 10,000 |
Installation: -15 to +50 °C | Operation: -45 to +70 °C | Storage: -45 to +70 °C
CLT SWA
