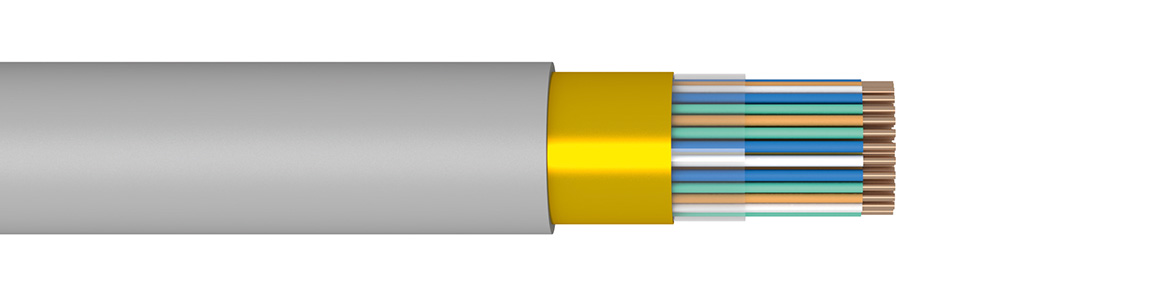

Copper wire
Core insulation – PVC
Plastic tape
Alu/PET tape
PVC outer jacket, grey
Transmission element – each 2 wires twisted to a pair. Cable core is transmission elements stranded in layers.
DIN VDE 0815
» telephone, signaling and data transmission
» permanent installation on and under plaster in dry or damp rooms, permanent installation on external walls
Temperature ranges for laying and assembly –5 °C to +50 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years
D – outside cable diameter
| Conductor diameter | mm | 0.6 | 0.8 |
|---|---|---|---|
| Max. loop resistance | Ω/km | 130.0 | 73.2 |
| Insulation resistance min. | GΩ.km | 100 | 100 |
| Mutual capacitance | nF/km | 1001) | 1001) |
| Capacity unbalance k1 at 800 Hz | pF/100m | 3002) | 3002) |
| Effective test voltage wire/wire at 50 Hz | V | 800 | 800 |
| Effective test voltage wire/shield at 50 Hz | V | 800 | 800 |
| Operating voltage | Vss | 300 | 300 |
1) in cables up to 4 pairs: 120 nF/km
2) in cables up to 4 pairs only one value can reach max. 500 pF/100 m
2) in cables with more than 4 pairs only 20 % values can reach max. 500 pF/100 m
| Wire/core diameter 0.6/0.93 mm | Wire/core diameter 0.8/1.43 mm | |||||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Stranded in layers | ||||||
| 1 | 4.3 | 30 | 100, 250, 500, 1,000 | 5.4 | 40 | 100, 250, 500, 1,000 |
| 2 | 4.5 | 35 | 100, 250, 500, 1,000 | 6.1 | 55 | 100, 250, 500, 1,000 |
| 3 | 5.4 | 45 | 100, 250, 500, 1,000 | 7.6 | 75 | 100, 250, 500, 1,000 |
| 4 | 5.9 | 50 | 100, 250, 500, 1,000 | 8.4 | 95 | 100, 250, 500, 1,000 |
| 5 | 6.4 | 60 | 100, 250, 500, 1,000 | 9.3 | 115 | 100, 250, 500, 1,000 |
| 6 | 6.8 | 75 | 100, 250, 500, 1,000 | 9.8 | 130 | 100, 250, 500, 1,000 |
| Wire/core diameter 0.6/1.20 mm | Wire/core diameter 0.8/1.60 mm | |||||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Unit stranding | ||||||
| 10 | 9.0 | 110 | 2,000 | 14.0 | 200 | 2,000 |
| 20 | 12.0 | 195 | 2,000 | 19.0 | 400 | 2,000 |
| 30 | 15.0 | 275 | 2,000 | 22.0 | 540 | 2,000 |
| 40 | 16.5 | 380 | 2,000 | 26.0 | 780 | 2,000 |
| 50 | 18.0 | 430 | 2,000 | 28.0 | 870 | 1,000 |
| 70 | 21.5 | 430 | 2,000 | 35.0 | 1,000 | 1,000 |
| 100 | 24.0 | 815 | 1,000 | 38.0 | 1,675 | 1,000 |
| 200 | 40.0 | 1,500 | 1,000 | 51.5 | 3,100 | 1,000 |
J-H(ST)H
