Indoor
Outdoor
Halogen Free
FTTx
Aerial

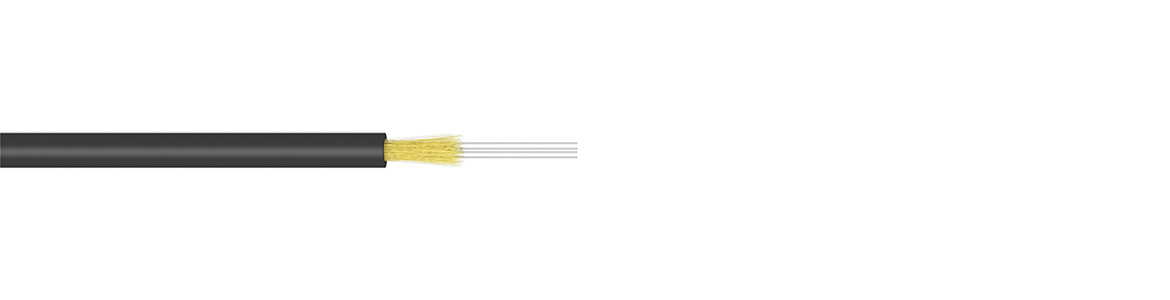

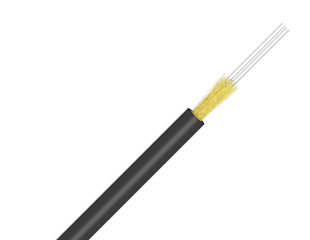

Optical fibers.
Aramid yarn.
FR-LSZH outer jacket, UV stable.
| Design Code | Fiber count | Cable outer diameter [mm] | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|
| 7A01 | 1–6 | 3.0 | 10.0 | 500 | 1,000 |
| 7A01 | 8–12 | 3.4 | 12.0 | 500 | 1,000 |
| 7A01 | 16 | 3.7 | 13.5 | 500 | 1,000 |
| 7A01 | 24 | 4.0 | 15.5 | 500 | 1,000 |
| Z236 | 1–12 | 3.4 | 13.0 | 700 | 1,000 |
| Z237 | 2 | 3.0 | 11.0 | 1,000 | 1,000 |
| Z237 | 4 | 3.2 | 11.0 | 1,000 | 1,000 |
| Z237 | 8 | 3.2 | 12.0 | 1,000 | 1,000 |
| Z237 | 12 | 3.4 | 13.0 | 1,000 | 1,000 |
Installation: -5 to +50 °C | Operation: -20 to +60 °C | Storage: -20 to +60 °C
Flat
