Indoor
Outdoor
Halogen Free
FTTx
Datacenter

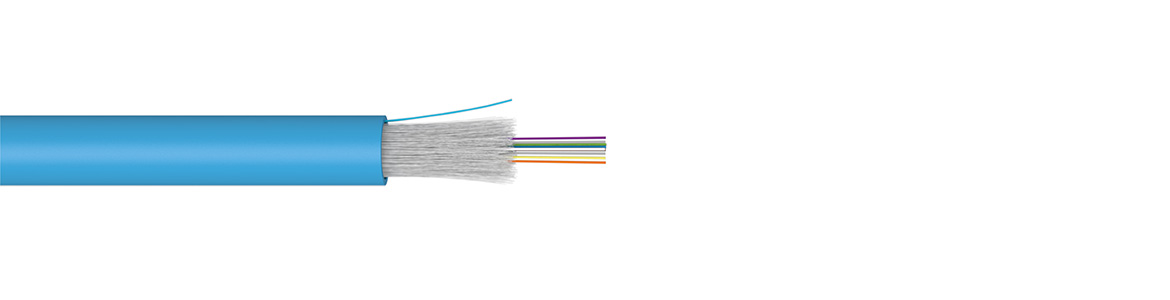

FR-LSZH buffered optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH outer jacket, UV stable.
| Design Code | Fiber count | Cable outer diameter [mm] | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|
| 5E×1 | 2 | 5.5 | 32.0 | 850 | 2,000 |
| 5E×1 | 4 | 6.0 | 39.0 | 1,200 | 2,000 |
| 5E×1 | 6 | 6.3 | 42.0 | 1,200 | 2,000 |
| 5E×1 | 8 | 7.1 | 51.0 | 1,500 | 2,000 |
| 5E×1 | 12 | 8.1 | 64.0 | 2,500 | 2,000 |
| 5E×1 | 16 | 9.7 | 85.0 | 2,700 | 2,000 |
| 5E×1 | 24 | 11.4 | 109.0 | 3,500 | 2,000 |
Installation: -5 to +50 °C | Operation: -20 to +60 °C | Storage: -20 to +60 °C
Distribution Improved
