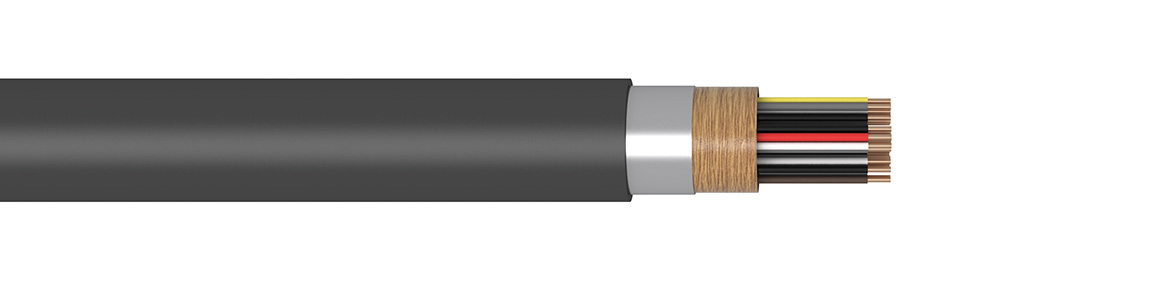

Copper wire
Core insulation – foam skin PE
Filling material
Crepe paper
Laminated aluminium foil
PE outer jacket, black
Transmission element – pair.
BT CW1236 and CW 1179
» conection cables in Local Area Networks and in private branch exchanges or telephony and signal transfers
» suitable for placement as under ground and conduit cables
Temperature ranges for laying and assembly –10 °C to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years
D – outside cable diameter
| Conductor diameter | mm | 0.4 | 0.5 | 0.63 | 0.9 |
|---|---|---|---|---|---|
| Max. loop resistance | Ω/km | 143 | 91 | 58 | 28 |
| Insulation resistance min. | GΩ.km | 1.5 | 1.5 | 1.5 | 1.5 |
| Mutual capacitance | nF/km | 56 | 56 | 56 | 59 |
| Capacity unbalance k1 | dB/km | 800 | 800 | 800 | 800 |
| Effective test voltage wire/wire at 50 Hz | V | 500 | 500 | 500 | 500 |
| Effective test voltage wire/shield at 50 Hz | V | 2,000 | 2,000 | 2,000 | 2,000 |
| Design code CW 1236 | ||||||||
| Wire/core diameter 0.4/0.75 mm | Wire/core diameter 0.5/0.9 mm | Wire/core diameter 0.63/1.15 mm | Wire/core diameter 0.90/1.50 mm | |||||
| Number of units | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] |
| 50 | 16.0 | 1,000 | 19.0 | 1,000 | 22.0 | 1,000 | 27.5 | 1,000 |
| 100 | 20.5 | 1,000 | 23.5 | 1,000 | 28.0 | 1,000 | 38.0 | 1,000 |
| 200 | 26.0 | 1,000 | 30.5 | 1,000 | 37.5 | 1,000 | ||
| 300 | 30.5 | 1,000 | 37.0 | 1,000 | 46.0 | 1,000 | ||
| 400 | 35.0 | 1,000 | 42.5 | 1,000 | 52.5 | 1,000 | ||
| 500 | 37.5 | 1,000 | 46.0 | 1,000 | 56.5 | 500 | ||
| 600 | 40.5 | 1,000 | 49.5 | 1,000 | 61.0 | 500 | ||
| 800 | 46.5 | 1,000 | 56.5 | 500 | 70.5 | 500 | ||
| 1,000 | 51.5 | 1,000 | 62.5 | 500 | ||||
| 1,200 | 56.0 | 500 | 69.0 | 500 | ||||
| 1,600 | 65.5 | 500 | ||||||
| 2,000 | 70.0 | 500 | ||||||
| Design code CW 1236/ CW 1179 | ||||||||
| Wire/core diameter 0.4/0.75 mm | Wire/core diameter 0.5/0.9 mm | Wire/core diameter 0.63/1.15 mm | Wire/core diameter 0.90/1.50 mm | |||||
| Number of units | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] |
| 50 | 16.0 | 1,000 | 19.0 | 1,000 | 22.0 | 1,000 | 27.5 | 1,000 |
| 100 | 20.5 | 1,000 | 23.5 | 1,000 | 28.0 | 1,000 | 38.0 | 1,000 |
| 200 | 26.0 | 1,000 | 30.5 | 1,000 | 37.5 | 1,000 | ||
| 300 | 30.5 | 1,000 | 37.0 | 1,000 | 46.0 | 1,000 | ||
| 400 | 35.0 | 1,000 | 42.5 | 1,000 | 52.5 | 1,000 | ||
| 500 | 37.5 | 1,000 | 46.0 | 1,000 | 56.5 | 500 | ||
| 600 | 40.5 | 1,000 | 49.5 | 1,000 | 61.0 | 500 | ||
| 800 | 46.5 | 1,000 | 56.5 | 500 | 70.5 | 500 | ||
| 1,000 | 51.5 | 1,000 | 62.5 | 500 | ||||
| 1,200 | 56.0 | 500 | 69.0 | 500 | ||||
| 1,600 | 65.5 | 500 | ||||||
| 2,000 | 70.0 | 500 | ||||||
CW 1326, CW 1326/CW 1179
