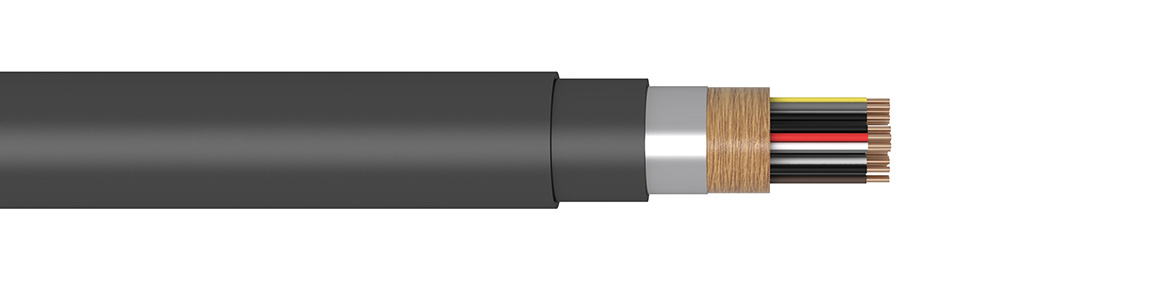

Copper wire
Core insulation – foam skin PE
Filling material
Crepe paper
Laminated aluminium foil
PE inner jacket, black
PE outer jacket, black
Twin pair twisted to units. Cable core is filled.
CW1128/1179
» connection cables in Local Area Networks and in private branch exchanges for telephony and signal transfer
» suitable for placement as underground and conduit cables
Temperature ranges for laying and assembly –10 °C to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years
D – outside cable diameter
| Conductor diameter | mm | 0.4 | 0.5 | 0.6 | 0.63 | 0.9 |
|---|---|---|---|---|---|---|
| Max. loop resistance | Ω/km | 143 | 91 | 63 | 58 | 28 |
| Insulation resistance min. | GΩ.km | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Mutual capacitance | nF/km | 56 | 56 | 42 | 56 | 59 |
| Effective test voltage wire/wire at 50 Hz | V | 500 | 500 | 500 | 500 | 500 |
| Effective test voltage wire/shield at 50 Hz | V | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| Design code CW1128 | ||||||||||
| Wire/core diameter 0.4/0.75 mm | Wire/core diameter 0.5/0.9 mm | Wire/core diameter 0.6/1.30 mm | Wire/core diameter 0.63/1.15 mm | Wire/core diameter 0.9/1.5 mm | ||||||
| Number of units | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] |
| 2 | 7.5 | 1,000 | 8.5 | 1,000 | 8.0 | 1,000 | 9.0 | 1,000 | ||
| 4 | 8.7 | 1,000 | 7.8 | 1,000 | 10.5 | 1,000 | 9.0 | 1,000 | 11.0 | 1,000 |
| 5 | 9.0 | 1,000 | 8.0 | 1,000 | 11.0 | 1,000 | 9.5 | 1,000 | 11.5 | 1,000 |
| 10 | 10.0 | 1,000 | 9.5 | 1,000 | 13.0 | 1,000 | 11.5 | 1,000 | 14.0 | 1,000 |
| 20 | 11.5 | 1,000 | 12.0 | 1,000 | 16.0 | 1,000 | 14.0 | 1,000 | 18.0 | 1,000 |
| 50 | 15.5 | 1,000 | 16.5 | 1,000 | 24.0 | 1,000 | 20.5 | 1,000 | 26.5 | 1,000 |
| 100 | 20.0 | 1,000 | 22.0 | 1,000 | 32.0 | 1,000 | 27.5 | 1,000 | 36.0 | 1,000 |
| Design code CW1128/1179 | ||||||||||
| Wire/core diameter 0.4/0.75 mm | Wire/core diameter 0.5/0.9 mm | Wire/core diameter 0.6/1.30 mm | Wire/core diameter 0.63/1.15 mm | Wire/core diameter 0.9/1.5 mm | ||||||
| Number of units | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] | External diameter [mm] | Standard production length [m] |
| 2 | 9.0 | 1,000 | 10.0 | 1,000 | 9.5 | 1,000 | 10.5 | 1,000 | ||
| 4 | 8.7 | 1,000 | 9.3 | 1,000 | 12.0 | 1,000 | 10.5 | 1,000 | 12.5 | 1,000 |
| 5 | 9.0 | 1,000 | 9.5 | 1,000 | 12.5 | 1,000 | 11.0 | 1,000 | 13.0 | 1,000 |
| 10 | 10.0 | 1,000 | 11.0 | 1,000 | 14.5 | 1,000 | 13.0 | 1,000 | 15.5 | 1,000 |
| 20 | 11.5 | 1,000 | 13.5 | 1,000 | 17.5 | 1,000 | 15.5 | 1,000 | 19.5 | 1,000 |
| 50 | 15.5 | 1,000 | 18.0 | 1,000 | 25.5 | 1,000 | 22.0 | 1,000 | 28.0 | 1,000 |
| 100 | 20.0 | 1,000 | 23.5 | 1,000 | 33.5 | 1,000 | 29.0 | 1,000 | 37.5 | 1,000 |
CW 1171/CW 1179
