Indoor
Outdoor
Halogen Free
FTTx
High Tensile

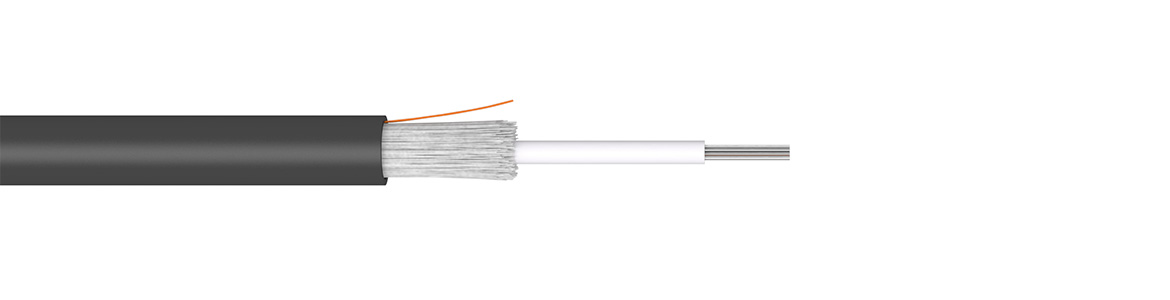

Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Rip-Cord.
FR-LSZH or PE outer jacket, UV stable.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| AR00 | 12 | 2.5 | 6.5 | 39.0 | 2,000 | 2,000 |
| BR00 | 24 | 3.0 | 7.7 | 51.0 | 2,500 | 2,000 |
| AR02 | 12 | 2.5 | 6.5 | 50.0 | 2,000 | 2,000 |
| BR02 | 24 | 3.0 | 7.7 | 68.0 | 2,500 | 2,000 |
Installation: -15 to +50 °C | Operation: -20 to +70 °C | Storage: -20 to +70 °C
CLT Micro
