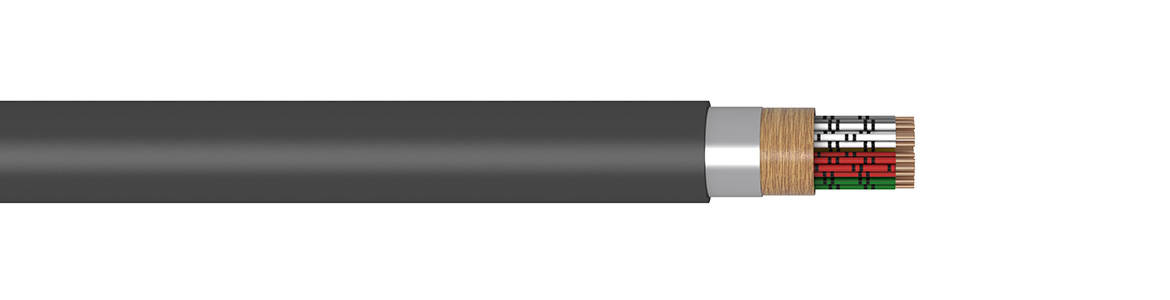

Copper wire
Core insulation – solid PE
Crepe paper
Laminated aluminium foil
PE outer jacket, black
Transmission element – star quads twisted to units.
Technical Agreement
» connection cables in Local Area Networks and in private branch exchanges for telephony and signal transfer
» suitable for placement as underground and conduit cables
Temperature ranges for laying and assembly –10 °C to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 30 years
D – outside cable diameter
| Pair 1 | a |  |
| b |  |
|
| Pair 2 | a |  |
| b |  |
| Conductor diameter | mm | 0.6 | 0.8 |
|---|---|---|---|
| Max. loop resistance | Ω/km | 130.0 | 73.2 |
| Insulation resistance min. | GΩ.km | 1.5 | 1.5 |
| Mutual capacitance | nF/km | 52 | 55 |
| Effective test voltage wire/wire at 50 Hz | V | 500 | 500 |
| Effective test voltage wire/shield at 50 Hz | V | 2,000 | 2,000 |
| Operating voltage max. | Vss | 225 | 225 |
| Wire/core diameter H52 0.6/1.1 mm | Wire/core diameter H55 0.8/1.4 mm | |||||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| 2 | 11.5 | 130 | 2,000 | 8.2 | 69 | 2,000 |
| 4 | 12.5 | 165 | 2,000 | 10.5 | 107 | 2,000 |
| 6 | 15.5 | 265 | 2,000 | 13.0 | 175 | 2,000 |
| 10 | 17.5 | 355 | 2,000 | 14.5 | 235 | 2,000 |
| 20 | 19.5 | 440 | 2,000 | 18.0 | 390 | 2,000 |
| 30 | 21.0 | 525 | 2,000 | 21.0 | 540 | 2,000 |
| 40 | 24.5 | 705 | 2,000 | 23.0 | 680 | 2,000 |
| 50 | 28.0 | 950 | 2,000 | 25.5 | 835 | 2,000 |
| 70 | 32.5 | 1,345 | 2,000 | 29.0 | 1,110 | 2,000 |
| 100 | 37.0 | 1,755 | 2,000 | 33.5 | 1,515 | 2,000 |
| 150 | 40.5 | 2,140 | 2,000 | 40.0 | 2,205 | 2,000 |
| 200 | 44.0 | 2,525 | 2,000 | 46.5 | 2,920 | 1,000 |
| 250 | 48.0 | 2,950 | 2,000 | 51.0 | 3,575 | 1,000 |
| 300 | 50.5 | 3,340 | 1,000 | 55.0 | 4,230 | 1,000 |
| 400 | 55.5 | 4,090 | 1,000 | 62.5 | 5,595 | 500 |
| 500 | 60.5 | 4,910 | 1,000 | 70.0 | 6,960 | 500 |
| 600 | 64.5 | 5,655 | 750 | 76.0 | 8,250 | 333 |
| 700 | 69.5 | 6,500 | 750 | |||
| 800 | 76.5 | 7,970 | 500 | |||
| 1000 | 83.5 | 9,545 | 500 | |||
