Armoured
Indoor
Outdoor
Halogen Free
Fire Resistant
Duct

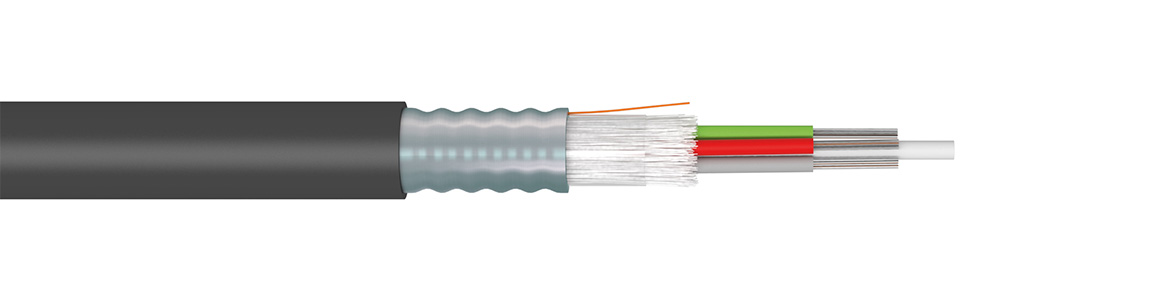

FRP dielectric central strenght member.
Gel filled PBT loose tube with optical fibers.
Waterblocking E-glass yarn.
Water-swellable tape.
Rip-Cord.
Corrugated steel tape.
FR-LSZH outer jacket, UV stable.
This cable is suitable for indoor or outdoor installation. The cable is fire resistant. The cable has full rodent protection. Passed following tests for circuit integrity: IEC 60331-11-1 and IEC 60331-25-1.
| Design Code | Max. fiber count | Loose tube diameter [mm] | Cable size | Net weight [kg/km] | Max. load (installation) [N] | Crush Resistance [N/10 cm] |
|---|---|---|---|---|---|---|
| Z298 | 72 | 1.7 | 12.1 | 171.0 | 3,000 | 10,000 |
| Z299 | 96 | 1.7 | 13.1 | 203.0 | 6,000 | 10,000 |
| Z300 | 144 | 1.7 | 15.1 | 272.0 | 12,000 | 10,000 |
Installation: -15 to +50 °C | Operation: -40 to +70 °C | Storage: -40 to +70 °C
CLT FSC 90
