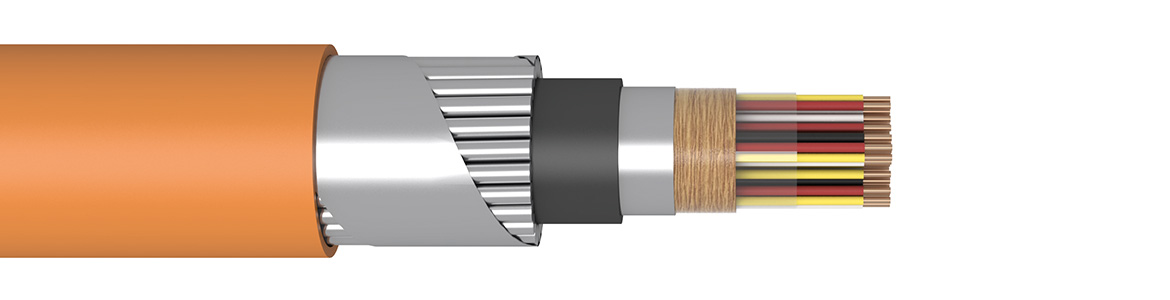

Copper wire
Core insulation – solid PE
Wrapping plastic tape
Crepe paper
Laminated aluminium foil
PE inner jacket, black
Armor aluminium wires
FRNC outer jacket, orange
Each 2 wires twisted to a pair (Screened or unscreened).
TP 31.30.13 – KDP – 01/00, ČSN IEC 332-3A, ČSN EN 50268-2, ČSN EN 50267-2-2
» transmission of electric signal of telecommunication, controlling and protecting purposes of control circuit
» for using in area danger of fire
» for indoor and outdoor installations, tunnels or collectors, direct burial placing with highest tension or supporting without carrying wire
» grasp or free placing in areas with alternating electromagnetic field danger
» standard, wet or moist ambient, spraying water and fleet immersion, dropping water with pH 7÷11
Temperature ranges for laying and assembly –5 °C
Operation and store temperatures – 40 °C to +65 °C
Permitted minimum bending radius min. 10D
Cable lifetime min. 40 years
D – outside cable diameter
| A-HHAH … P A-HHAH-J … P | |||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Core diameter 1.0 mm | |||
| 3 | 24.8 | 635 | 1,000 |
| 4 | 25.2 | 661 | 1,000 |
| 6 | 25.7 | 729 | 1,000 |
| 7 | 26.4 | 759 | 1,000 |
| 12 | 29.8 | 993 | 1,000 |
| 16 | 32.6 | 1,148 | 1,000 |
| 24 | 37.7 | 1,487 | 500 |
| 30 | 39.5 | 1,653 | 500 |
| 48 | 44.1 | 2,381 | 500 |
| 61 | 48.5 | 2,807 | 500 |
| Core diameter 1.12 mm | |||
| 3 | 24.8 | 645 | 1,000 |
| 4 | 25.2 | 674 | 1,000 |
| 6 | 25.7 | 748 | 1,000 |
| 7 | 26.4 | 781 | 1,000 |
| 12 | 29.8 | 1,031 | 1,000 |
| 16 | 32.6 | 1,200 | 1,000 |
| 24 | 37.7 | 1,564 | 500 |
| 30 | 39.5 | 1,749 | 500 |
| 48 | 44.1 | 2,534 | 500 |
| 61 | 48.5 | 3,002 | 500 |
| A-HHAH … PIMF A-HHAH-J … PIMF | |||
| Number of units | External diameter [mm] | Net weight [kg/km] | Standard production length [m] |
| Core diameter 1.0 mm | |||
| 3 | 25.5 | 674 | 1,000 |
| 4 | 25.9 | 700 | 1,000 |
| 6 | 27.0 | 775 | 1,000 |
| 7 | 27.9 | 831 | 1,000 |
| 12 | 32.2 | 1,079 | 1,000 |
| 16 | 35.0 | 1,262 | 1,000 |
| 24 | 41.3 | 1,641 | 500 |
| 30 | 43.4 | 1,832 | 500 |
| 48 | 51.1 | 2,604 | 500 |
| 61 | 56.4 | 3,090 | 500 |
| Core diameter 1.12 mm | |||
| 3 | 25.5 | 684 | 1,000 |
| 4 | 25.9 | 713 | 1,000 |
| 6 | 27.0 | 796 | 1,000 |
| 7 | 27.9 | 854 | 1,000 |
| 12 | 32.2 | 1,117 | 1,000 |
| 16 | 35.0 | 1,314 | 1,000 |
| 24 | 41.3 | 1,718 | 500 |
| 30 | 43.4 | 1,928 | 500 |
| 48 | 51.1 | 2,758 | 500 |
| 61 | 56.4 | 3,285 | 500 |
