AJ-2Y(L)2YDB2Y

x4x0.9 S (H45) LG (...Cu/2B 0....)

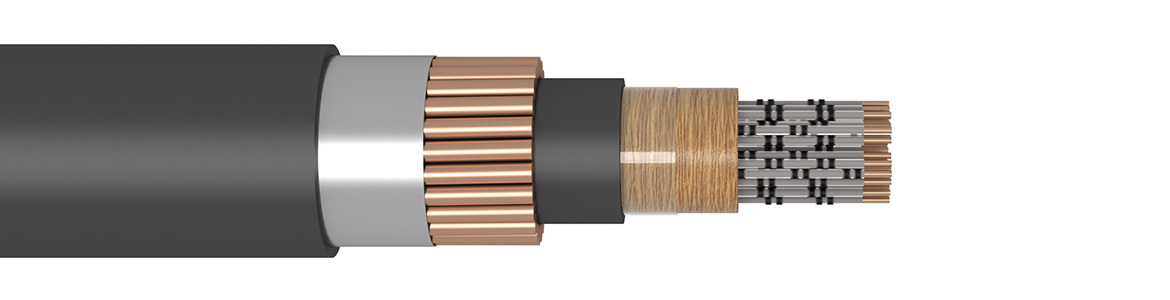

Cable core – the quads are stranded to the core in concetric layers

Specification

Dlk 1.013.109y, Dlk.1.013.110

Application

» general use in protective equipment
» underground and conduit cables
» use in areas with danger of electromagnetic field

Environmental conditions

Temperature ranges for laying and assembly –10 °C to +60 °C
Operation and store temperatures – 40 °C to +70 °C
Permitted minimum bending radius min. 20D
Cable lifetime min. 30 years

D – outside cable diameter

Electrical parameters (20 °C)

Conductor diameter	mm	0.9
Max. loop resistance	Ω/km	56.6
Insulation resistance min.	GΩ.km	10
Mutual capacitance	nF/km	45
Effective test voltage wire/wire at 50 Hz	V	2500
Effective test voltage wire/shield at 50 Hz	V	2500
Operating voltage	Vss	600

Value of reduction factor according do Dlk. 1.013.110y – type code RKZ 601,602,…

	Wire/core diameter 0.9/1.8 mm
Number of units	External diameter [mm]	Net weight [kg/km]	Standard production length [m]
RKZ 601
3	20.1	700	1,000
5	22.4	890	1,000
10	27.0	1,260	1,000
20	32.7	1,880	1,000
30	38.1	2,470	1,000
40	42.1	2,990	1,000
RKZ 504
3
5
10
RKZ 503
20
30
RKZ 502
40
RKZ 403
5
10	29.9	1,990	1,000
RKZ 402
10
20	36.7	2,860	1,000
30	42.1	3,610	500
40	46.5	4,240	500
